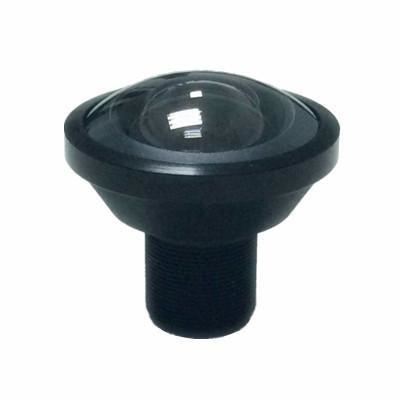

1/3" 2.33mm F2.0 14Megapixel M12x0.5 mount 163degree wide angle board lens for AR0330/OV4689/OV8858

Because of certain online store system problem, the shipping fee may be unreasonable sometimes. DON'T WORRY, we will check each order and revise it. If you have paid the order, we will contact you and return the extra shipping fee to you later if it is unreasonable. Any question or advice, leave messages to us.

1/3" 2.33mm 14Megapixel F2.0 S-mount M12x0.5 mount 163degree Wide-Angle Lens for AR0330/OV4689/OV8858 1/3"~1/4" sensors, megapixel wide-angle lens for sport DV

Model: 130233MPF
SENSOR SIZE 1/3" OV4689/AR0330 & 1/4" OV8858
MAX IMAGE CIRCLE Φ6.3mm
FOCAL LENGTH(EFL) 2.33mm
F.O.V. (D*H*V) OV4689: 163°*138.4°*76°; AR0330: 160°*130.6°*84.5°; OV8858: 116°*94°*69°
RESOLUTION 14MP
APERTURE F2.0
OPTICAL DISTORTION OV4689: H -16.1%, V -56.1%; AR0330: H -20%, V -48.8%; OV8858: H -13.2%, V -23.8%
MOUNT M12X0.5
B.F.L.(O) 3.99mm
B.F.L.(M) 2.71mm
T.T.L. 29.3mm

DIMENSION Φ25x26.59mm
LENS CONSTRUCTURE 7G+IR
RELATIVE ILLUMINATION OV4689: >99.7%; AR0330: >99%; OV8858: >99.27%
CRA OV4689: <15.94°; AR0330: <15.74°; OV8858: <12.22°
IR COATING 640+/-8NM AT:50%

Tips:

- ***MP: without IR-Cut filter

- ***MPF: with IR-Cut filter

- 650nm/850nm/940nm IR filter optional

For more lenses, please feel free to contact us at sales01@megapixellenses.com; camera.lens@videolenssupplier.com
